Full Auto Face Production Line
Share This Product:
  • Information
  • Specification
1)Equipment Dimension: 4200mm(L)×3700mm(W)×1700mm(H)

2)Equipment Color: Standard warm gray 1C (Customizable)

3)Equipment Weight: ≤3000kg; Ground Supporting: ≤500KG/m2

4)Power Supply: AC 3phase 400V±5﹪, 50Hz; Power: about 4Kw

5)Compressed air: 0.5~0.7 MPA; Usage: about 300L/min

6)Environment Requirement: Temperature 10~35℃; Humidity 5-35%HR;

No flammable, corrosive gas, no dust (Cleanliness of not less than 100,000).
Producing Process

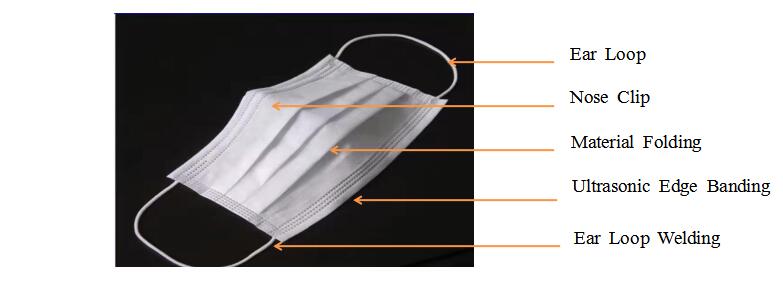

Nonwoven fabric, melt-blown nonwovens fabric and nose clip feeding → Automatic folding → Cutting into sheet → Ultrasonic edge sealing → Ear loop cutting → Ear loop welding → Ear loop folding → Finished product stacking
Main Components

No.

Component

Qty.

Remark

1

Material unwinding device

3

Max4pcs; randomly use 3pcs

2

Nose clip unwinding device

1



3

Nose clip cutting device

1



4

Material edges folding device

1



5

Material folding device





6

Material edges sealing device

1

Four edges

7

Material driven device

2



8

Transfer line

3



9

1+2 distributing device

2



10

Ear loop welding device

2



11

Stacking line

2



12

Control system

1



13

Control panel

1


Raw Material Specification


Quantity

Width(mm)

O.D.(mm)

I.D.(mm)

Weight(kg)

Fabric

3

170~200

Φ600

Φ76.2

Max. 15

Nose clip

1

3-7

Φ400

Φ76.2

Max. 25

Ear loop

4 bags/

3

\

\

\

Production Specification
Dimension of Face: Standard type; 175*95mm
Production Capacity
1)Productivity: 60-90ppm;

2)Production Pass Rate:More than 90% (except unacceptable raw material and wrong operation)

3)Equipment Failure Rate: 5% (refers to faults caused by the equipment itself )
Electrical component

No.

Electrical parts

Brand

Remark

1

Air cylinder

AirTAC; CHELIC

To catch up with delivery time, the electrical component brand will probably be changed because of short supply in the extraordinary times.
The brands can be determined through communication and negotiation with clients.

2

Solenoid valve

AirTAC

3

Servo motor

Yaskawa

4

PLC

Mitsubishi

5

Bearing

NSK; SAMICK

6

Linear guide

STAF; PMI; CPC

7

Optical fiber; Amplifier

Omron; Panasonic

8

Touch screen

Weinview

9

Relay

Schneider

10

Button

Schneider

Spare part & Tool

No.

Item

Specification

Quantity

Remark

1

Toolbox

\

1

For commissioning

Feedback form contact with us
